The Virtual scale can be used to emulate communications with a scale. The Virtual Scale can calculate the price and tare, and it depends on configurations in the LS Central system if the results of those calculations are returned.

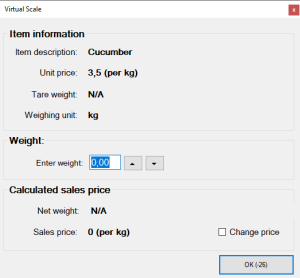

A part of the Virtual Scale is visible in the Virtual Station (top, left corner), but when a scale item is sold in the POS and the LS Hardware Station is asked for the weight, the Virtual Scale displays a dialog window (see image below) where you can enter the weight and see how the information is handled and calculated.
|
Click here for instructions on how to install, configure the devices, and start the Virtual Station. |
|
|
To be able to use virtual devices in the POS, they need to be added to the Hardware Profile through the Detect Hardware operation. |
|
|
The same configurations are used as for an actual device. |
|
Click here to see step-by-step instructions on how to activate the tare calculations for the scale. |
|
Note: The Change price option reduces by 10% the calculated price that is sent back from the Virtual Scale. This is to emulate a different price coming from a calculating price scale than the POS itself would calculate. |
