Changing the Setup Within the POS

In the POS it is possible to edit the buttons and the grids.

To edit a button/grid

To switch on the Design mode

To exit Design mode

To edit a button/grid

  1. Place the cursor over the button/grid you wish to edit.
  2. Right-click the button.

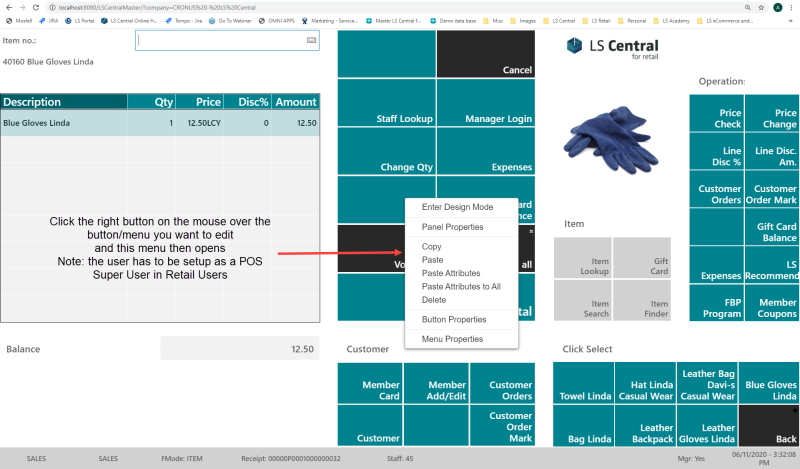

The possibilities, when the active part is a menu/button, are shown in the below image. Note: Other areas display a limited version of this menu:

It is possible to edit the data with these actions; the POS will update its look accordingly.

Tip: There is no Undo action available for the Design mode, so take care to save a copy of the different profiles before you start working. It is so easy to change and edit the POS setup in the Design mode.



Function Description
Enter Design Mode Enters the design mode, gives controls for the setup data.
Panel Properties Opens the POS Panel Card for the active panel.
Copy Valid for the selected button.
Paste Pastes the button that was copied with the Copy function for the selected button.
Paste attributes Pastes the attributes for the button that was copied with the Copy function for the selected button.
Paste Attributes to All Pastes the attributes for all the buttons in the menu which the selected button belongs to and which was copied with the Copy function for the selected button.
Delete Delete the setup for the button.
Button Properties Opens the POS Button Properties Card for the selected button.
Menu Properties Opens the POS Menu Card for the active menu.

To switch on the Design mode

  • Select the option Enter Design Mode.

To exit Design mode

  • Select the option Exit Design Mode.

The DESIGNMODE command is an On/Off command; the same command is used to start and exit the design mode.

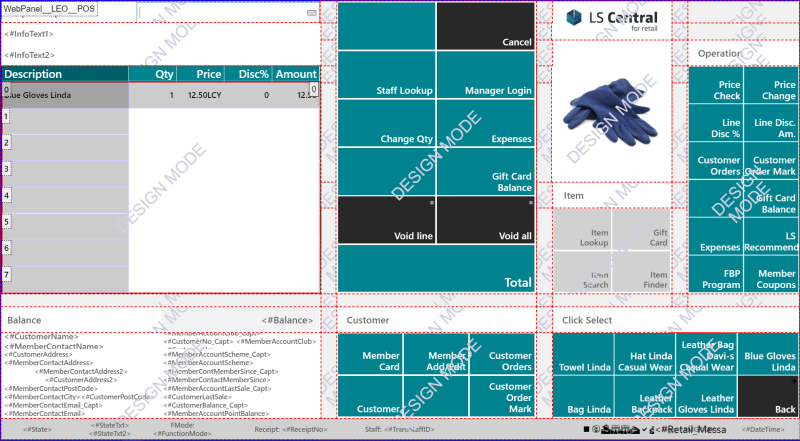

  • While in Design Mode, the POS indicates this with a watermark text.
  • The different columns and rows are marked with red dotted lines.
