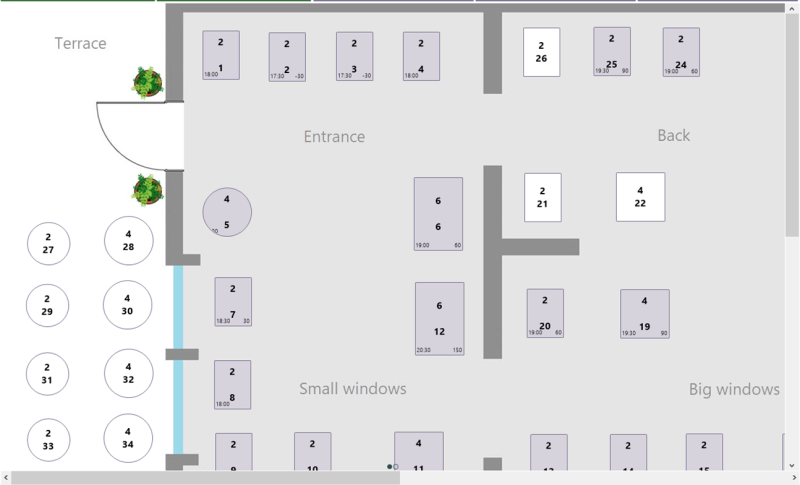

The Graphical View displays the dining tables in the dining area graphically according to the graphical layout where each dining table button shows the status of the dining table (whether it is occupied, available, or reserved, or available with an upcoming reservation) at the start of the time range being viewed.
The typical length of the time range viewed is 180 minutes.
The system builds this data on run time by collecting information for each dining table at the start time of the time range viewed on
- whether the dining table is occupied and for how long.
- the availability of the dining table based on the dining area plan and layout.
- reservations (and walk-ins) that the dining table are allocated to during the time range.
You can filter the graphical view by capacity, sections, and status.
Note: When a filter is placed, the program shows the selected dining tables with a colored border. The border color is defined in the POS menu selected in the Dining Tbl. Alert-Ellipse Skin field for the dining area.
Context sensitive actions on pressing a graphical view button
When you press a button on the Graphical view, an action may be triggered:
- if you are not in the process of allocating, pressing a graphical button usually displays a drop-down list with possible actions that are dependent on the status of the dining table at the time.
- If allocating, the system will try to allocate this dining table to the reservation at the time.
- If the dining table has a reservation at this time, the program will highlight the corresponding reservation in the walk-in/reservation list.
